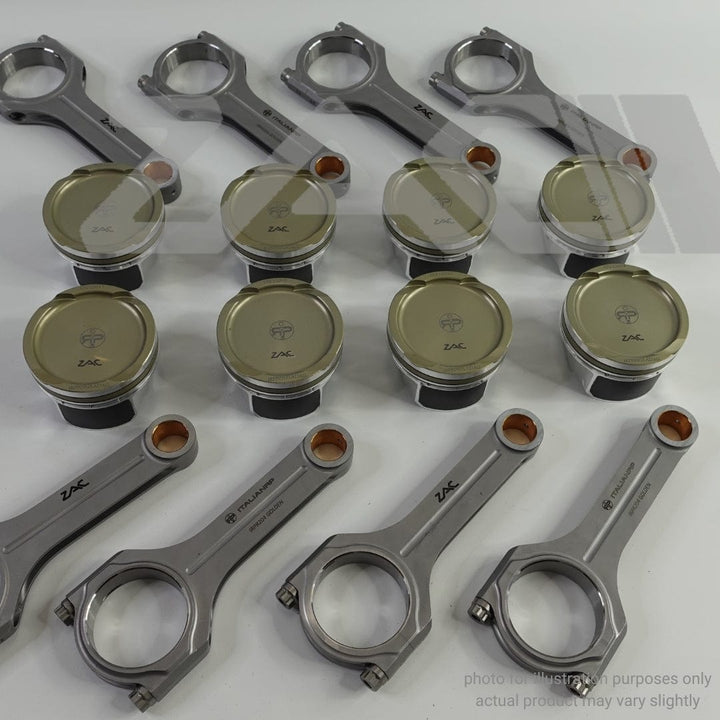

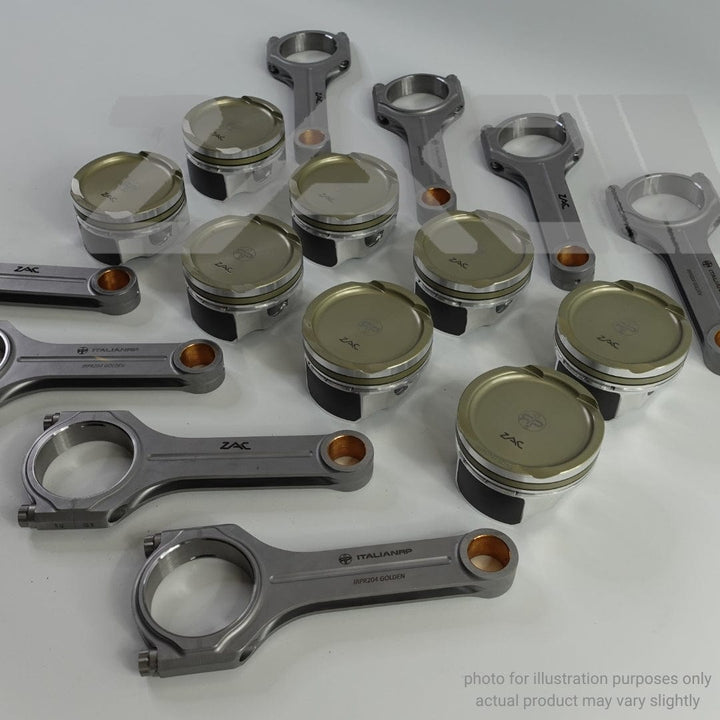

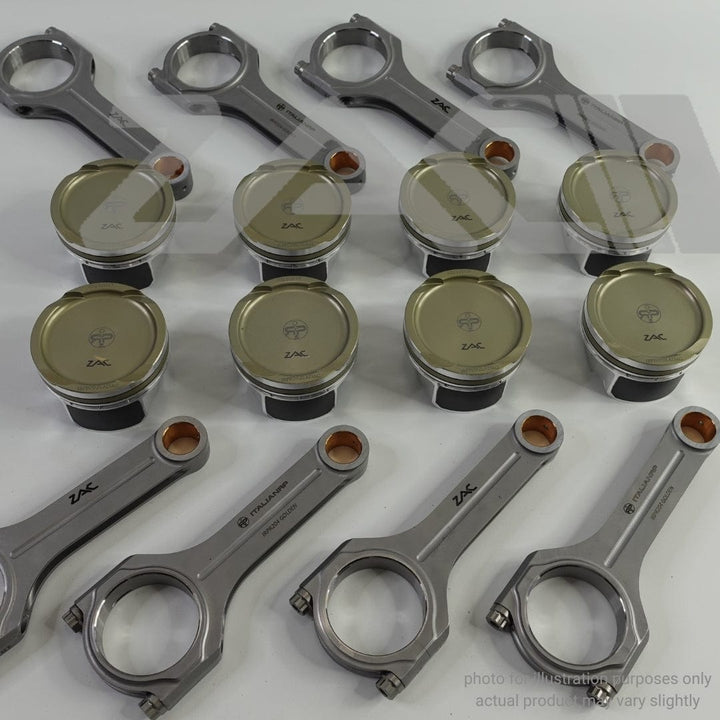

E63 Forged Pistons and Rods package (M157)

$7,266.00
Shipping calculated at checkout.

The ultimate engine deserves the ultimate upgraded internals.
ZAC Motorsport Forged Pistons made by Italian RP, The world's number one. Exceptional innovation, quality and strength.

PRE ORDER Order in the next [totalHours] hours %M minutes to get it between and

Compression Ratio: 10.5/1(stock)

10.5/1(stock)
9.5/1
9.0/1
8.5/1
Add to WishlistCompare

masteramerican expressapple paygoogle paypaypalshopify payvisa
Fitment GuideInstructions

ECU Reflash required? N/A

Availability : In Stock Pre order Out of stock

Frequently Bought Together

Total price:$11,265.00 $10,865.10
Description

ZAC Motorsport, together with Italian RP is proud to offer our range of Forged pistons and rods to suit your AMG

For the M157 forged internals are a must when pushing beyond 800hp

Available in a variety of compression ratios to suit your requirements (feel free to ask our staff if you require some guidance).

BUILD SERVICE IS AVAILABLE, we have expert engine builders in UAE, EU and AU.

Talk to us about our bare block exchange service.

*Price includes Forged Rods and bolts, pistons, rings, gudgeon pins and assembly lubrication.

*No bearings supplied.



Specifications

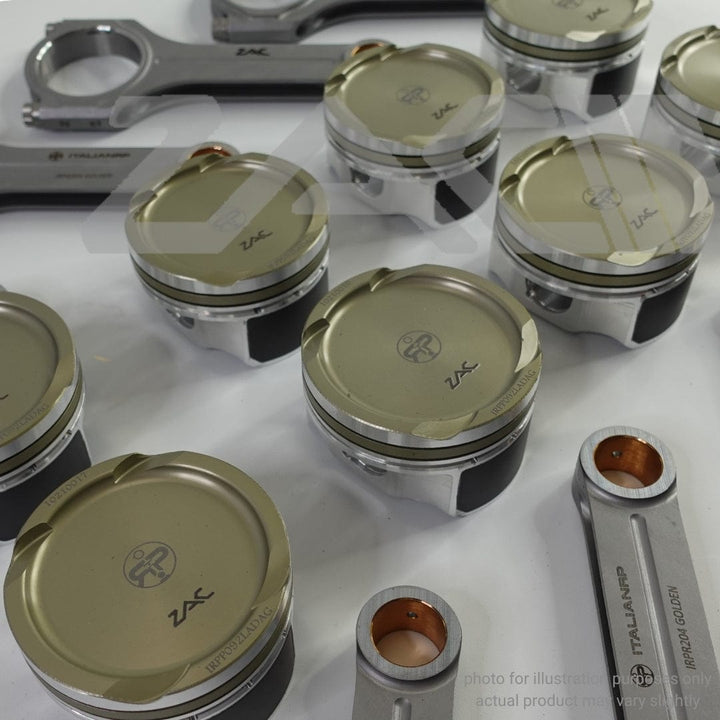

PISTONS:
MATERIAL Forged 2618/Al
TYPE Double Bridge
GALVANIC Top surface and from 1st to 2nd ring groove

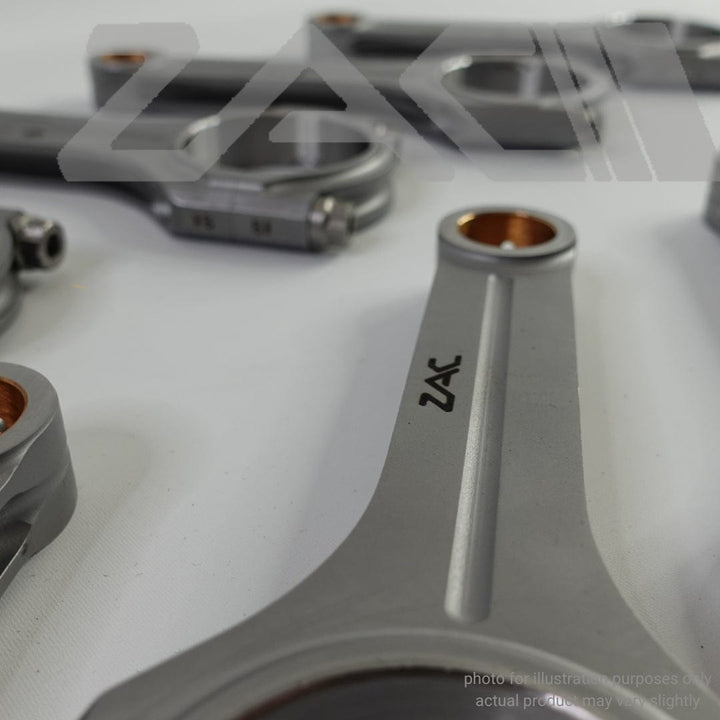

RODS
MATERIAL 34CrNiM06
WEIGHT 15% less of IRPRS
STRENGTH 1500-1600Mpa
HARDNESS 44-46HRC

Warranty

WARRANTY:

Please refer to terms and conditions set from "Italian RP"

LINK



Returns are not accepted for this product

What's Included?

Included in the box:8 Forged Rods and bolts
8 Forged pistons, rings
8 gudgeon pins
Packet of assembly lube

Installation Information

This product requires specialist assembly by an engine builder
