GT63 Billet inlet manifolds (X290)

Shipping calculated at checkout.
ETA between and

Back in 2021 We created the first billet manifolds for the M177 LS1 (C63) engine.
The Engineers at ZAC Motorsport designed the Billet Inlet Manifolds to address the issues with the OEM plastic manifolds...

masteramerican expressapple paygoogle paypaypalshopify payvisa

ECU Reflash required? NO

Availability : In Stock Pre order Out of stock


The factory manifolds are constructed from plastic, in 2 halves and then plastic welded (melted) together) This construction method is economical for large scale production, and (mostly) ok for standard engine power. However, the limits of the factory manifolds are well documented...

Cracked M177 Manifolds

Furthermore, the plastic is not able to be drilled or tapped, so optional ports for nitrous, meth, or boost sense cannot be added. Finally, there is no way to add extra port injectors to the plastic manifolds, limiting fueling options.

AMG Billet Inlet Manifold


ZAC Motorsport engineers researched several construction methods:

1) Casting

+ cheaper to produce

+ able to be produced as a single piece

- Inferior strength (material selection, porosity, hot spots)

- questionable finish

- low accuracy

- requires post processing (machining)


2) 3D Printed metal

+ able to be produced as a single piece

+ great surface finish

- expensive to produce

- slow construction process

- limited production facilities worldwide

- requires post processing (machining)

M177 Turbo upgrade

Billet Machining

+ extremely strong material

+ great surface finish

- requires 2 piece construction

+ relatively common manufacturing process

+ extremely accurate

AMG Manifolds


We settled on machining billet 6061-t6 aluminum. Whilst casting would have saved us costs (1/3rd the cost to produce). The quality of the end product does not meet our standard. Additionally, machining allows us the ability to make incremental changes, or small batch runs with specific customizations (different size port injectors for example), whereas casting requires an investment of a mold, that cannot be changed. All manifolds from ZAC Motorsport are machined therefor, then TIG welded, by our master craftsman right here in Australia.

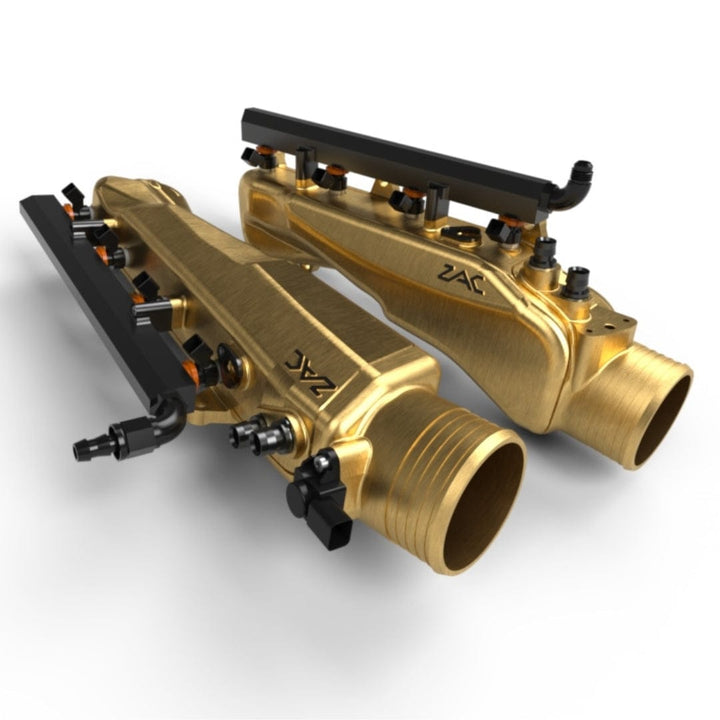

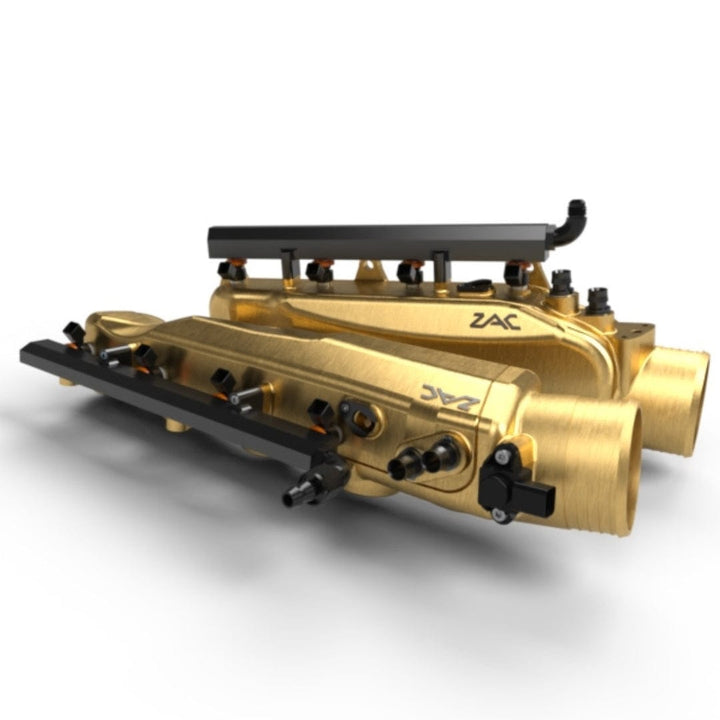

Optional Port Injection

As emissions regulations get tighter and tighter, manufacturers have had to develop technology to meet the stringent emissions targets. Direct injection (DI) is one of the results. With Mercedes opting for pure DI setup, as opposed to VW group using a combination of port and DI. Our port injection option retrofits to offer similar flexibility and tuning options (when coupled with a Piggyback ECU) as the VW/Audi systems.

The benefits of Port Injection:

  • Increased fuel capacity
  • Port cleaning effects of fuel into the intake runners, reducing carbon buildup in the ports and on the back of the inlet valves.
  • IAT cooling into the combustion chamber
  • Ability to run full E85 fuel.

port injection AMG manifold

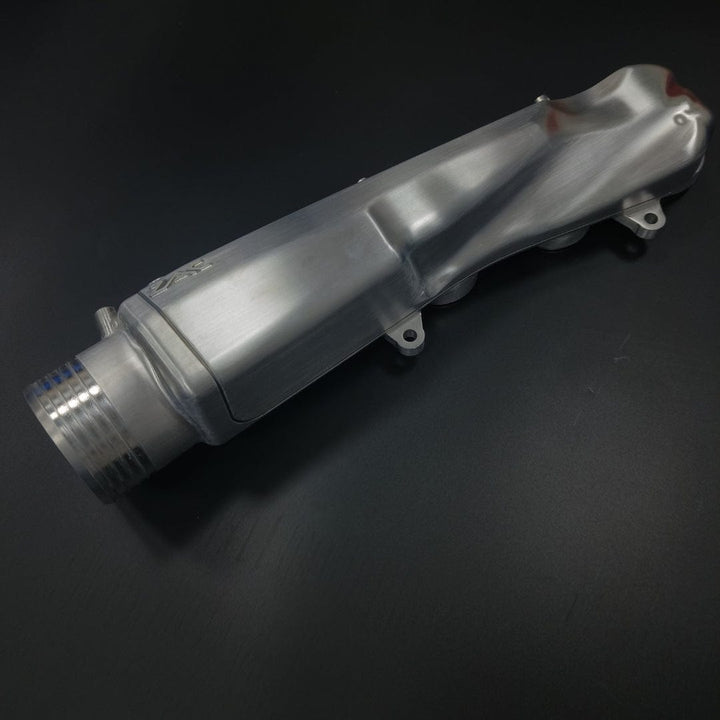

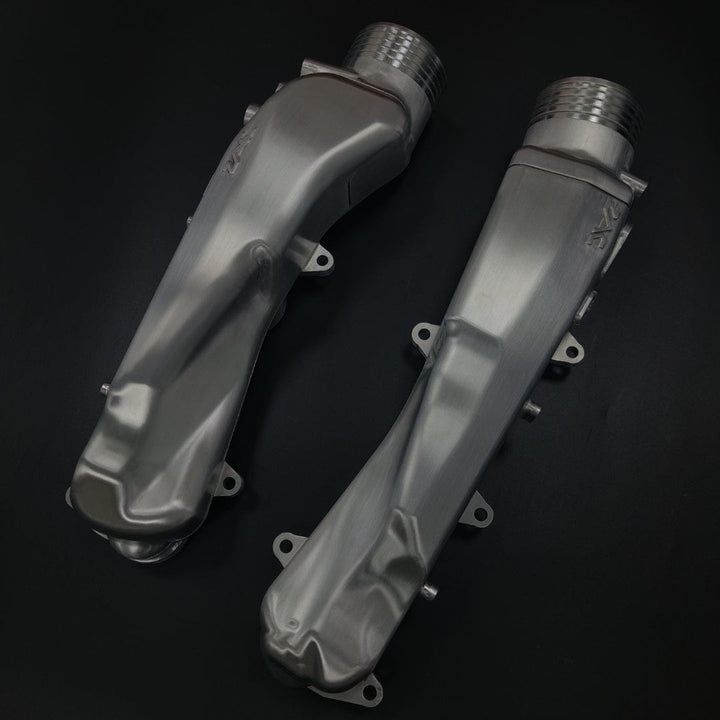

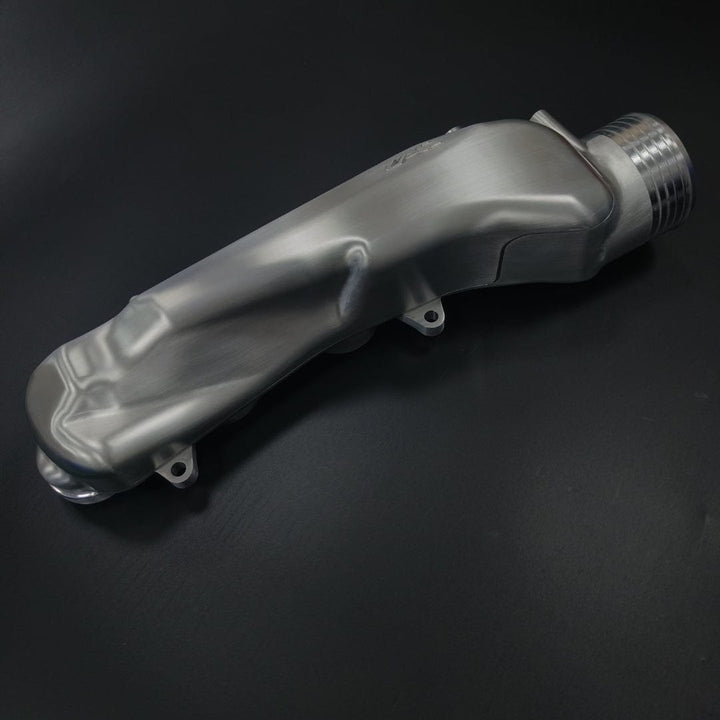

Machined billet 6061 aluminum
TIG Welded by hand in Australia
Titanium bolt mount kit as standard
Optional Port Injection Setup



We want you to be happy! Our warranty is here to back up the faith we have in our products, which are designed, engineered and created in Australia. If you have any issues, please contact us!

ZAC warranty covers defects in materials and workmanship of your ZAC Product for 1 year from the date of purchase for the original purchaser. with the exception of ECU Tuning/Re-Flashing, which have a 30 day satisfaction guarantee.

Further details can be found here...


What's Included?

Included in the box:
Billet manifolds
Titanium Mount Bolts
Vacuum Line fitting
Blanks for optional sense ports

Fuel Rail and mounts
AN Fitting to connect Fuel Line

(We are working on a full kit for for the M177 ls2 including ECU and all fuel lines, Contact us for information.)

We suggest replacing the factory manifold/ head O rings (not included).

Installation Information

This product should be installed by a professional mechanic.
This product may require the use of a lifting hoist to access the underside of the vehicle.
